Geely Haoyue L 2024
Car Overview
Description
The Geely Haoyue L is an affordable and versatile mid-size 7-seater SUV, designed with family travel and everyday use in mind.
This model excels in providing ample space, a well-appointed interior, and impressive power performance, making it a strong contender in its segment. The exterior boasts a sleek, commanding presence, while the cabin is equipped with a range of thoughtful features that enhance both comfort and convenience.

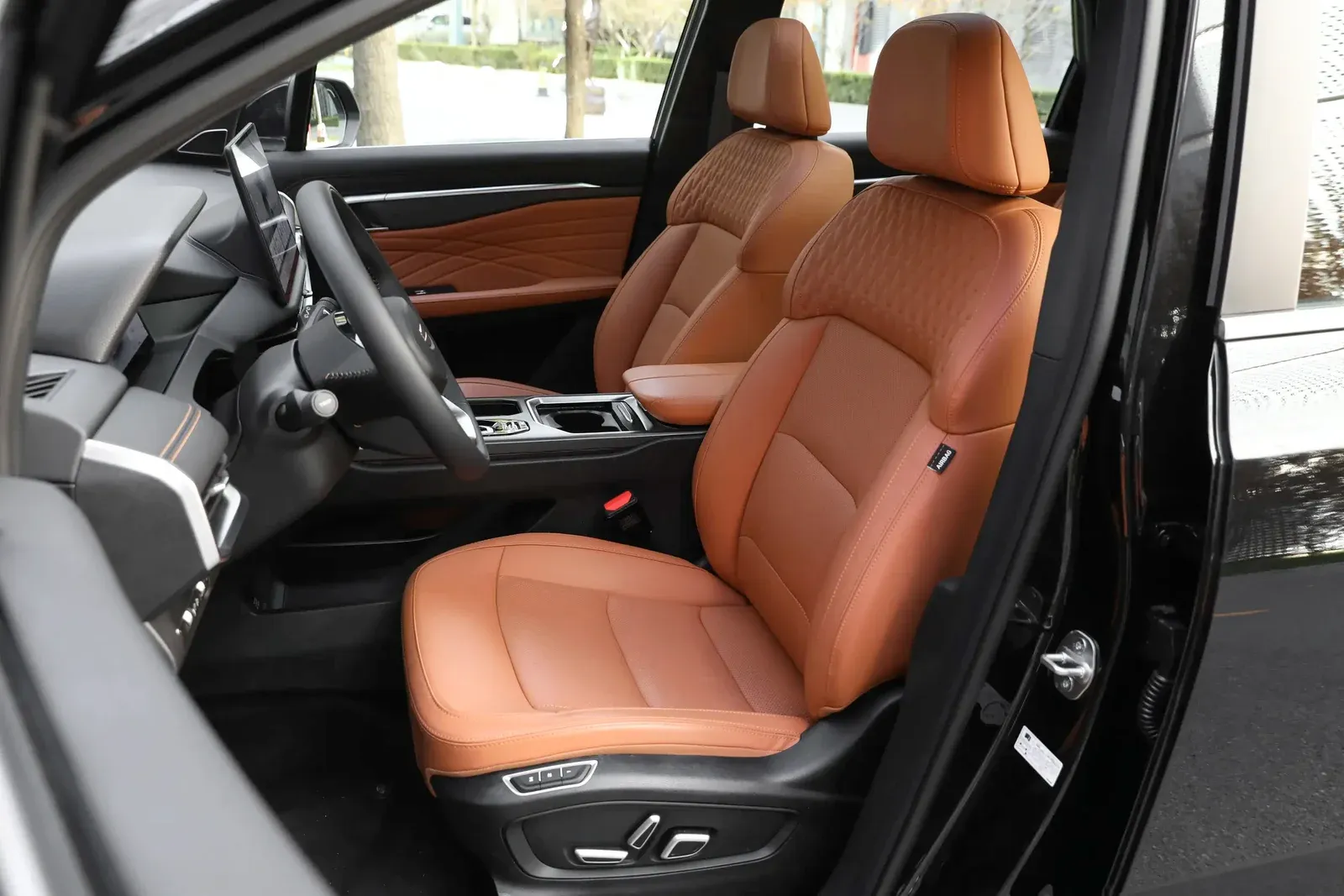

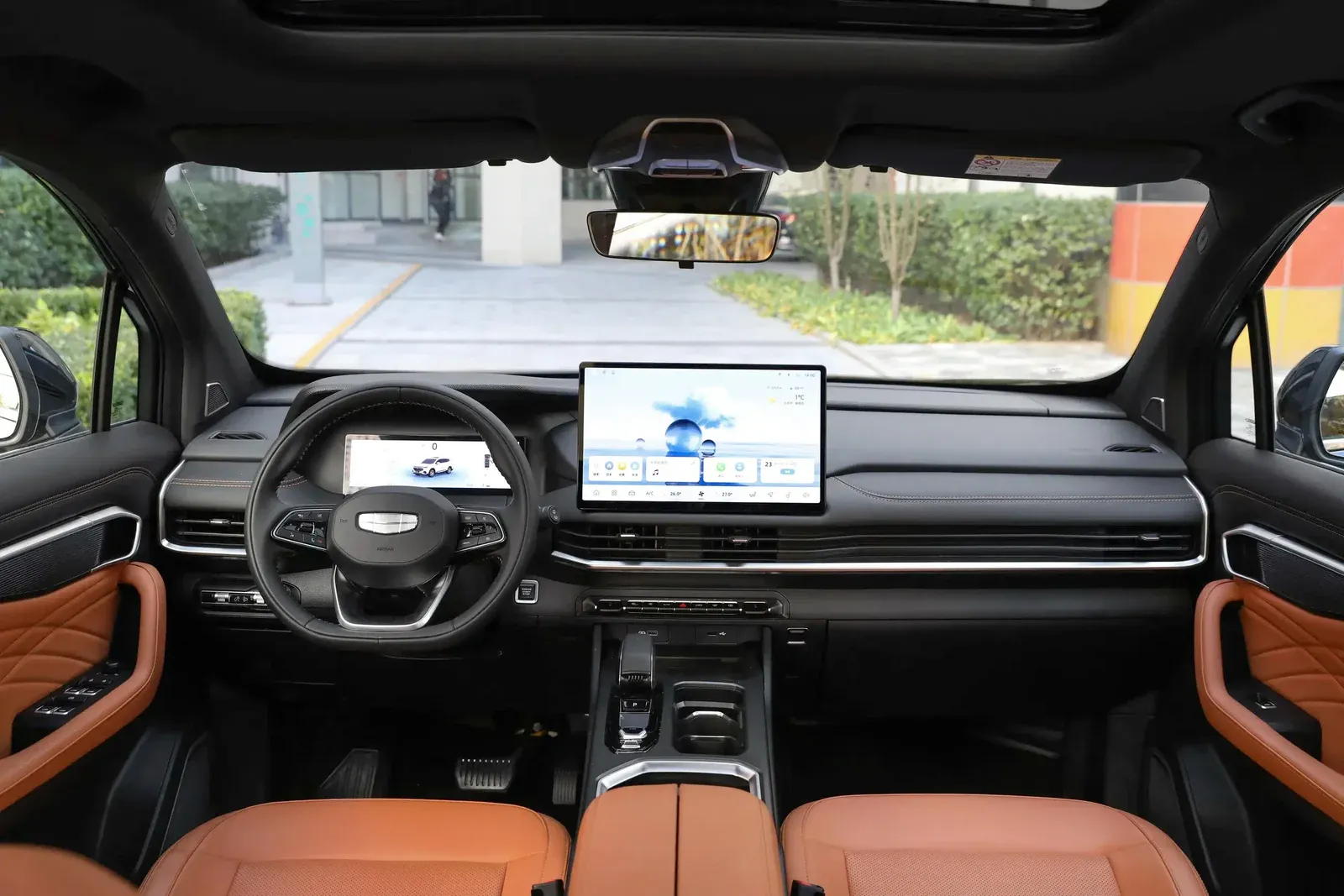

Inside, the Geely Haoyue L combines soft-touch materials and chrome accents to create a sophisticated yet understated business-style atmosphere. The 14.6-inch center control screen, running the Galaxy OS 2.0 system, offers seamless navigation, music, and voice control for a safe and enjoyable driving experience.
Under the hood, the Geely Haoyue L features a 2.0T turbocharged engine, delivering 160 kW of power and 325 Nm of torque, paired with a 7-speed wet dual-clutch transmission for smooth, responsive performance.
Parameter configuration
| name | Haoyue L 2024 2.0TD DCT luxury model | Haoyue L 2024 2.0TD DCT Premium type | Haoyue L 2024 2.0TD DCT flagship |
| Basic information | |||
| manufacturer | Geely Automobile | Geely Automobile | Geely Automobile |
| rank | Mid-size SUV | Mid-size SUV | Mid-size SUV |
| Energy type | gasoline | gasoline | gasoline |
| Time to market | 2023.11 | 2023.11 | 2023.11 |
| engine | 2.0T 218 horsepower L4 | 2.0T 218 horsepower L4 | 2.0T 218 horsepower L4 |
| Maximum power (kW) | 160(218Ps) | 160(218Ps) | 160(218Ps) |
| Maximum torque (N·m) | 325 | 325 | 325 |
| gearbox | 7 speed double clutch | 7 speed double clutch | 7 speed double clutch |
| Length x Width x Height (mm) | 4860x1910x1770 | 4860x1910x1770 | 4860x1910x1770 |
| Body structure | 5-door, 7-seater SUV | 5-door, 7-seater SUV | 5-door, 7-seater SUV |
| Maximum speed (km/h) | 210 | 210 | 210 |
| Official 100 km Acceleration time (s) | 7.9 | 7.9 | 7.9 |
| WLTC Combined Fuel consumption (L/100km) | 7.89 | 7.89 | 7.89 |
| Vehicle warranty period | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers |
| body | |||
| Length (mm) | 4860 | 4860 | 4860 |
| Width (mm) | 1910 | 1910 | 1910 |
| Height (mm) | 1770 | 1770 | 1770 |
| Wheelbase (mm) | 2825 | 2825 | 2825 |
| Front wheel base (mm) | 1600 | 1600 | 1600 |
| Rear wheel base (mm) | 1620 | 1620 | 1620 |
| Minimum ground clearance (mm) | 168 | 168 | 168 |
| Body structure | SUV | SUV | SUV |
| Number of doors (each) | 5 | 5 | 5 |
| Door opening mode | Swing door | Swing door | Swing door |
| Number of seats (PCS) | 7 | 7 | 7 |
| Service weight (kg) | 1710 | 1730 | 1730 |
| Full load weight (kg) | 2295 | 2295 | 2295 |
| Tank capacity (L) | 60 | 60 | 60 |
| Luggage compartment Capacity (L) | 193-2360. | 193-2360. | 193-2360. |
| Minimum turning radius | 5.9 m | 5.9 m | 5.9 m |
| engine | |||
| Engine type | JLH-4G20TDJ | JLH-4G20TDJ | JLH-4G20TDJ |
| Volume (mL) | 1969 | 1969 | 1969 |
| Displacement (L) | 2 | 2 | 2 |
| Intake form | turbocharging | turbocharging | turbocharging |
| Engine layout pattern | Hold horizontally | Hold horizontally | Hold horizontally |
| Cylinder arrangement | L | L | L |
| Number of cylinders (PCS) | 4 | 4 | 4 |
| Valve per cylinder (number) | 4 | 4 | 4 |
| Compression ratio | 10.8 | 10.8 | 10.8 |
| Valve mechanism | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 218 | 218 | 218 |
| Maximum power (kW) | 160 | 160 | 160 |
| Maximum power speed (rpm) | 5000 | 5000 | 5000 |
| Maximum torque (N·m) | 325 | 325 | 325 |
| Maximum torque speed (rpm) | 2000-4500. | 2000-4500. | 2000-4500. |
| Engine specific technology | - | - | - |
| Fuel form | gasoline | gasoline | gasoline |
| Fuel oil label | 92 # | 92 # | 92 # |
| Oil supply mode | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder |
| Cylinder head material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Cylinder block material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Environmental protection standard | Country VI b | Country VI b | Country VI b |
| gearbox | |||
| Transmission description | 7 speed double clutch | 7 speed double clutch | 7 speed double clutch |
| Shift number | 7 | 7 | 7 |
| Transmission type | Wet dual-clutch Transmission (DCT) | Wet dual-clutch Transmission (DCT) | Wet dual-clutch Transmission (DCT) |
| Chassis/steering | |||
| Driving mode | front-drive | front-drive | front-drive |
| Front suspension form | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension |
| Rear suspension form | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Steering type | Electric power assist | Electric power assist | Electric power assist |
| Car body structure | self-supporting | self-supporting | self-supporting |
| Wheel/Brake | |||
| Front brake type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Rear brake type | Solid disk type | Solid disk type | Solid disk type |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 235/50 R19 | 235/50 R19 | 235/50 R19 |
| Rear tire specifications | 235/50 R19 | 235/50 R19 | 235/50 R19 |
| Spare gauge | ● Not full size | ● Not full size | ● Not full size |
| Spare tire placement method | ● Bottom hanging type | ● Bottom hanging type | ● Bottom hanging type |
| Active safety | |||
| ABS anti-lock | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Active safety early warning system | - | - | ● Lane departure warning |
| - | - | ● Front collision warning | |
| - | - | ● Rear collision warning | |
| - | - | ● Reverse side warning | |
| - | - | ●DOW open door warning | |
| Active brake | - | - | ● Standard Configuration |
| Parallel auxiliary | - | - | ● Standard Configuration |
| Lane keeping assist system | - | - | ● Standard Configuration |
| Keep lane centered | - | - | ● Standard Configuration |
| Fatigue driving tips | - | - | - |
| Active DMS fatigue detection | - | - | - |
| In-car vital signs detection | - | - | - |
| Road traffic sign recognition | - | - | ● Standard Configuration |
| Signal light recognition | - | - | - |
| Night vision system | - | - | - |
| Passive safety | |||
| Front airbag | ● Main driver seat | ● Main driver seat | ● Main driver seat |
| ● Passenger seat | ● Passenger seat | ● Passenger seat | |
| Side airbag | ● Front Row | ● Front Row | ● Front Row |
| Side safety air curtain | - | ● Standard Configuration | ● Standard Configuration |
| Front knee air bag | - | - | - |
| Central airbag | - | - | - |
| Seat belt is not fastened | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display |
| Child Seat Interface (ISOFIX) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Passive pedestrian protection | - | - | - |
| Safety tyre | - | - | - |
| Auxiliary/control configuration | |||
| Parking radar | - | - | - |
| ● Back | ● Back | ● Back | |
| Warning of front car leaving | - | - | - |
| Driver assistance image | ● Astern image | ● Astern image | ● Astern image |
| - | ●360° panoramic image | ●360° panoramic image | |
| - | ● Transparent image | ● Transparent image | |
| Cruise control system | ● Cruise control | ● Cruise control | ● Cruise control |
| - | - | ● Adaptive cruise | |
| - | - | ● Full speed adaptive cruise | |
| Automatic lane change assistance | - | - | - |
| Automatic ramp exit | - | - | - |
| Navigation assistance driving | - | - | - |
| Driver assistance class | - | - | ●L2 level |
| Automatic parking | - | - | - |
| Tracking astern | - | - | - |
| Memory parking | - | - | - |
| AUTOHOLD | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Uphill Assistance (HAC) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Steep Descent (HDC) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Engine start-stop technology | - | - | - |
| Variable suspension regulation | - | - | - |
| Air suspension | - | - | - |
| Electromagnetic induction suspension | - | - | - |
| Variable steering ratio system | - | - | - |
| Front axle limited slip mode | - | - | - |
| Rear axle limited slip mode | - | - | - |
| Central differential locking function | - | - | - |
| Low-speed four-wheel drive | - | - | - |
| Integrated active steering system | - | - | - |
| Driving mode selection | ● Sports | ● Sports | ● Sports |
| ●ECO/ Economy | ●ECO/ Economy | ●ECO/ Economy | |
| ● Standard comfort | ● Standard comfort | ● Standard comfort | |
| External configuration | |||
| Skylight type | ○ The panoramic skylight can be opened | ● Can open panoramic skylight | ● Can open panoramic skylight |
| Light sense canopy | - | - | - |
| Roof rack | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Sports appearance kit | - | - | - |
| Electric spoiler | - | - | - |
| Active closed intake grille | - | - | - |
| Aluminium alloy wheel hub | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Side pedal | - | - | - |
| Frameless design door | - | - | - |
| Hidden door handle | - | - | - |
| Towing hook | - | - | - |
| Internal configuration | |||
| Steering wheel material | ● Cortex | ● Cortex | ● Cortex |
| Steering wheel adjustment | ● Up and down + front and back | ● Up and down + front and back | ● Up and down + front and back |
| Electric steering wheel control | - | - | - |
| Steering wheel function | ● Multi-function control | ● Multi-function control | ● Multi-function control |
| Driving computer screen | ● Color | ● Color | ● Color |
| LCD instrument style | ● Full liquid crystal | ● Full liquid crystal | ● Full liquid crystal |
| LCD meter size (inches) | ●10.2 | ●10.2 | ●10.2 |
| - | - | - | |
| Comfort/security configuration | |||
| Electric suction door | - | - | - |
| Electric rear door | - | ● Standard Configuration | ● Standard Configuration |
| Inductive rear door | - | - | - |
| Electric rear door position memory | - | ● Standard Configuration | ● Standard Configuration |
| Engine electronic anti-theft | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Car central control lock | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Remote key type | ● Intelligent remote control key | ● Intelligent remote control key | ● Intelligent remote control key |
| ● Bluetooth key for mobile phone | ● Bluetooth key for mobile phone | ● Bluetooth key for mobile phone | |
| Keyless entry | ● Main driver seat | ● Main driver seat | ● Main driver seat |
| Keyless start | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Remote boot | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Remote control mobile vehicle | - | - | - |
| Vehicle call function | - | - | - |
| Head-up display system (HUD) | - | - | - |
| Built-in tachograph | - | - | - |
| Active noise reduction | - | - | - |
| Mobile phone wireless charging | - | - | ● Standard Configuration |
| Mobile phone wireless charging maximum power (W) | - | - | 15 |
| 110V/220V/230V power socket | - | - | - |
| Luggage compartment 12V power interface | - | ● Standard Configuration | ● Standard Configuration |
| Seat configuration | |||
| Seat material | ● Imitation leather | ● Imitation leather | ● Imitation leather |
| Sports style seat | - | - | - |
| Seat layout | ●2+3+2 | ●2+3+2 | ●2+3+2 |
| Second row of separate seats | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Third row seat | ●2 seats | ●2 seats | ●2 seats |
| Electric seat adjustment | - | ● Main driver seat | ● Main driver seat |
| - | - | ● Passenger seat | |
| Overall adjustment of the main driver seat | ● Forward and backward movement | ● Forward and backward movement | ● Forward and backward movement |
| ● Backrest Angle | ● Backrest Angle | ● Backrest Angle | |
| ● High and low adjustment | ● High and low adjustment | ● High and low adjustment | |
| Local adjustment of the main driver seat | ● Headrest | ● Headrest | ● Headrest |
| - | - | ● Waist | |
| Passenger seat overall adjustment | ● Forward and backward movement | ● Forward and backward movement | ● Forward and backward movement |
| ● Backrest Angle | ● Backrest Angle | ● Backrest Angle | |
| Passenger seat local adjustment | ● Headrest | ● Headrest | ● Headrest |
| Second row seat overall adjustment | ● Forward and backward movement | ● Forward and backward movement | ● Forward and backward movement |
| ● Backrest Angle adjustment | ● Backrest Angle adjustment | ● Backrest Angle adjustment | |
| The second row of seats is partially adjusted | - | - | - |
| Front seat function | - | - | ● Heating |
| - | - | ● Ventilation | |
| - | - | ● Memory (main driver) | |
| Second row seat feature | - | - | - |
| Third row seat function | - | - | - |
| Boss key | - | - | - |
| Front/rear armrests | ● Front Row | ● Front Row | ● Front Row |
| Rear cup holder | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Heating/cooling cup holder | - | - | - |
| Rear seat reclining ratio | ●50:50 | ●50:50 | ●50:50 |
| Rear-seat power reclining | - | - | - |
| Second row of tray tables | - | - | - |
| Intelligent interconnection | |||
| Center control screen size (inches) | ●14.6 | ●14.6 | ●14.6 |
| Central control screen material | - | - | - |
| Center console color screen resolution | 1920x1080 | 1920x1080 | 1920x1080 |
| Color Screen Pixel Density (PPI) | ●151 | ●151 | Low 151 |
| Touch screen vibration feedback | - | - | - |
| GPS navigation system | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| AR reality navigation | - | - | - |
| Navigation information display | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Road rescue service | - | - | ● Standard Configuration |
| Bluetooth/car phone | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Mobile Internet mapping | ●HUAWEIHiCar | ●HUAWEIHiCar | ●HUAWEIHiCar |
| ● Original factory machine | ● Original factory machine | ● Original factory machine | |
| Vehicle networking | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| 4G/5G network | ●4G | ●4G | ●4G |
| OTA upgrade | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Facial recognition | - | - | - |
| Fingerprint recognition | - | - | - |
| Voiceprint recognition | - | - | - |
| Emotion recognition | - | - | - |
| Speech recognition control system | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Voice wake-up free function | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Voice region wake-up recognition function | ● Main driver | ● Main driver | ● Main driver |
| ● Co-pilot | ● Co-pilot | ● Co-pilot | |
| Continuous speech recognition | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Visible to say | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Voice assistant wake word | Hello lucky | Hello lucky | Hello lucky |
| Gesture control function | - | - | - |
| Wi-Fi hotspot | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Audio-visual entertainment | |||
| Multi-finger fly screen control | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| App store | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Multimedia interface | ●USB/Type-C | ●USB/Type-C | ●USB/Type-C |
| Number of USB/Type-C ports | ● Two in the front row | ● Two in the front row | ● Two in the front row |
| ● Two in the back | ● Two in the back | ● Two in the back | |
| USB/Type-C Maximum charging power | - | - | - |
| Car TV | - | - | - |
| Rear LCD screen | - | - | - |
| Simulated sound wave | - | - | - |
| Karaoke function | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Audio brand | - | - | - |
| Number of speakers (PCS) | ●6 | ●6 | ●6 |
| Rear multimedia control | - | - | - |
| Lighting arrangement | |||
| Low beam lamp | ●LED | ●LED | ●LED |
| Full beam | ●LED | ●LED | ●LED |
| Daytime running light | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Adaptive near and far light | - | - | ● Standard Configuration |
| Automatic headlight | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Steering auxiliary light | - | - | - |
| Front fog lamp | - | - | - |
| Headlight Follow-up Steering (AFS) | - | - | - |
| Headlight height adjustment | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Headlight cleaning function | - | - | - |
| Interior ambient light | - | - | - |
| Active ambient light | - | - | - |
| Lighting feature | - | - | - |
| Light projection technique | - | - | - |
| Headlights turn off late | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Headlight rain fog mode | - | - | - |
| Glass/rear view mirror | |||
| Power window | ● Front Row | ● Front Row | ● Front Row |
| ● Back Row | ● Back Row | ● Back Row | |
| The window is raised and lowered by one click | ● All Car | ● All Car | ● All Car |
| Window anti-clamping function | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Exterior rearview mirror function | ● Electric regulation | ● Electric regulation | ● Electric regulation |
| - | ● Heating | ● Heating | |
| - | ● Electric folding | ● Electric folding | |
| - | ● Automatic folding of lock car | ● Automatic folding of lock car | |
| Internal rearview mirror function | - | - | - |
| Car mirror | ● Main driver + no lighting | ● Main driver + no lighting | ● Main driver + no lighting |
| ● Passenger seat + no lighting | ● Passenger seat + no lighting | ● Passenger seat + no lighting | |
| Rear privacy glass | - | - | - |
| Car sun curtain | - | - | - |
| Rain sensing wipers | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Rear wiper | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Rear window opens | - | - | - |
| Multilayer soundproof glass | - | - | - |
| Front windshield electric heating | - | - | - |
| Heating water nozzle | - | - | - |
| Air conditioning/Refrigerator | |||
| Air conditioning control mode | ● Auto | ● Auto | ● Auto |
| Independent rear air conditioning | - | - | - |
| Rear air outlet | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Concealed air conditioning outlet | - | - | - |
| Temperature zone control | ● Dual zone air conditioning | ● Dual zone air conditioning | ● Dual zone air conditioning |
| Car air purifier | - | - | ● Standard Configuration |
| PM2.5 filter device in car | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| HEPA filter device | - | - | - |
| Anion generator | - | - | ● Standard Configuration |
| In-car fragrance device | - | - | - |
| AQS Air Quality Management System | - | - | - |
| Car refrigerator | - | - | - |
| Car refrigerator function | - | - | - |
| Intelligent configuration | |||
| Vehicle intelligent system | ● Galaxy OS | ● Galaxy OS | ● Galaxy OS |
| Mobile App remote control | ● Vehicle monitoring | ● Vehicle monitoring | ● Vehicle monitoring |
| ● Remote control | ● Remote control | ● Remote control | |
| ● Service Reservation | ● Service Reservation | ● Service Reservation | |
| ● Digital key | ● Digital key | ● Digital key | |
| Heat pump management system | - | - | - |
| Number of external cameras (PCS) | ●1 | ●4 | ●5 |
| Outside camera head pixel | - | - | - |
| Interior camera head pixel | - | - | - |
| Number of ultrasonic radars (PCS) | ●4 | ●4 | ●4 |
| Number of millimeter wave radars (PCS) | - | - | ●2 |
| Sub-meter high precision positioning system | - | - | - |
| High precision map | - | - | - |
| Sentinel (Clairvoyant) mode | - | - | - |
| V2X communication | - | - | - |
| Optional package | |||
| Custom optional | - | - | - |
| High-end custom camping gear | |||
| - | - | - |
Features
Dimensions & Capacity
Any questions? Contact us now
Get In Touch
If you have any questions or need support, fill out the form below with your name, email, and message and we will respond as soon as possible.
Contact details
We are always here to answer any questions or concerns you may have. Thanks for contacting us!
- Unit A, Jiajinlong Qianhai Automobile Town, Nanshan District, Shenzhen City, Guangdong, China
- 8619521162618
- thomas@chinaautodirect.com
- 8619521162618
Follow us
ABOUT US
Welcome to China Auto Direct, your premier source for the finest Chinese automobiles at unbeatable prices. We specialize in providing businesses worldwide with direct access to a diverse range of high-quality vehicles from China, ensuring that you receive exceptional value and reliable service with every transaction.
Why Choose Us?
Quality Assurance
We offer a curated selection of vehicles, ensuring that you receive only the best autos from China.
Competitive Pricing
Our direct sourcing approach allows us to offer competitive prices, providing you with great value.
Reliable Service
Our experienced team is dedicated to ensuring a smooth and efficient export process, handling all the details so you can focus on your business.
Global Reach
With a robust network of partners and clients worldwide, we are well-equipped to meet your automotive needs, no matter where you are.
Frequently Asked Questions
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident.
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
