Geely Coolray 2025
Car Overview
Description
The Geely Coolray is a compact SUV that excels in exterior design, interior comfort, performance, safety, and overall value, making it an excellent choice for those seeking a well-rounded vehicle.

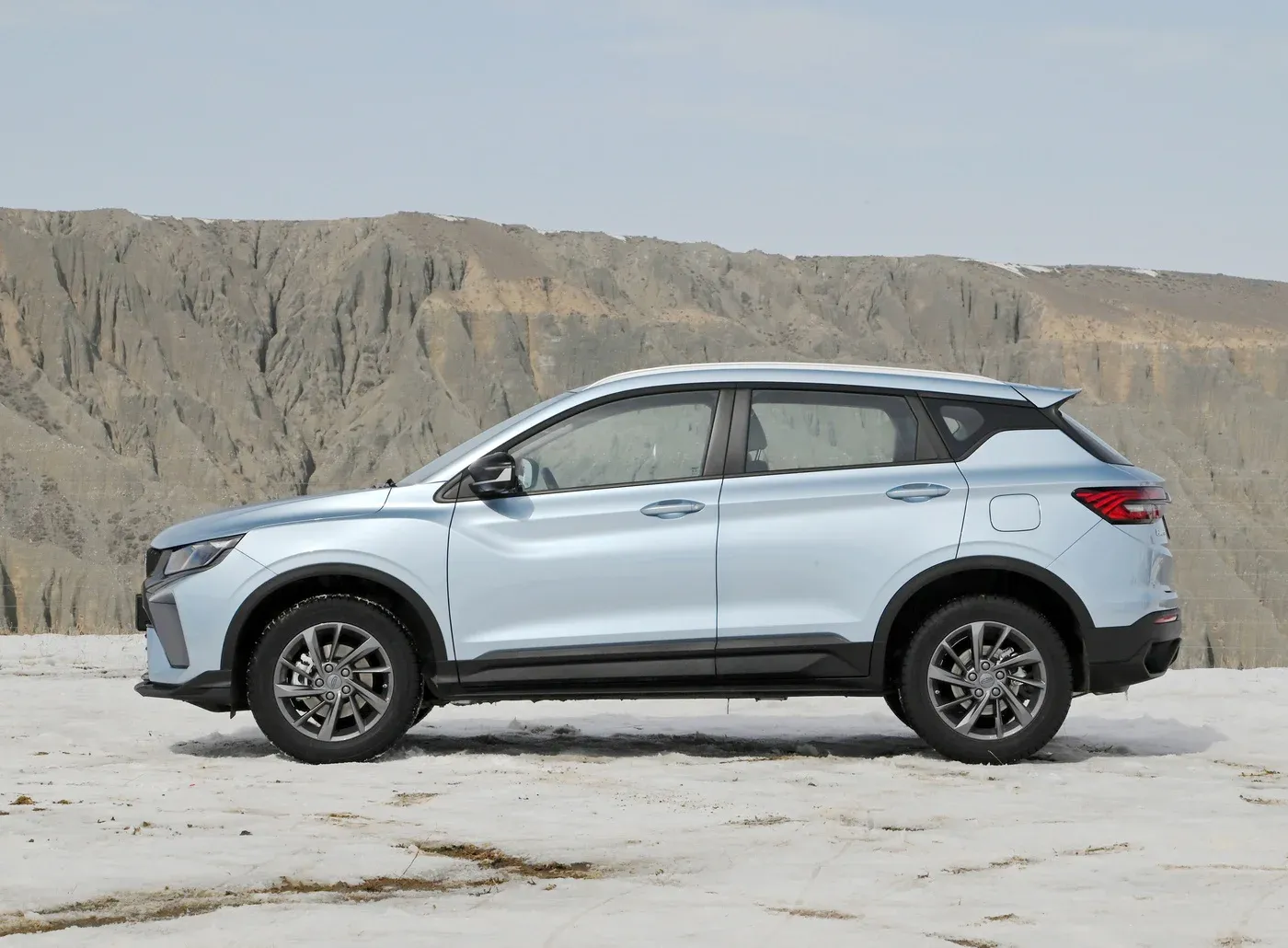

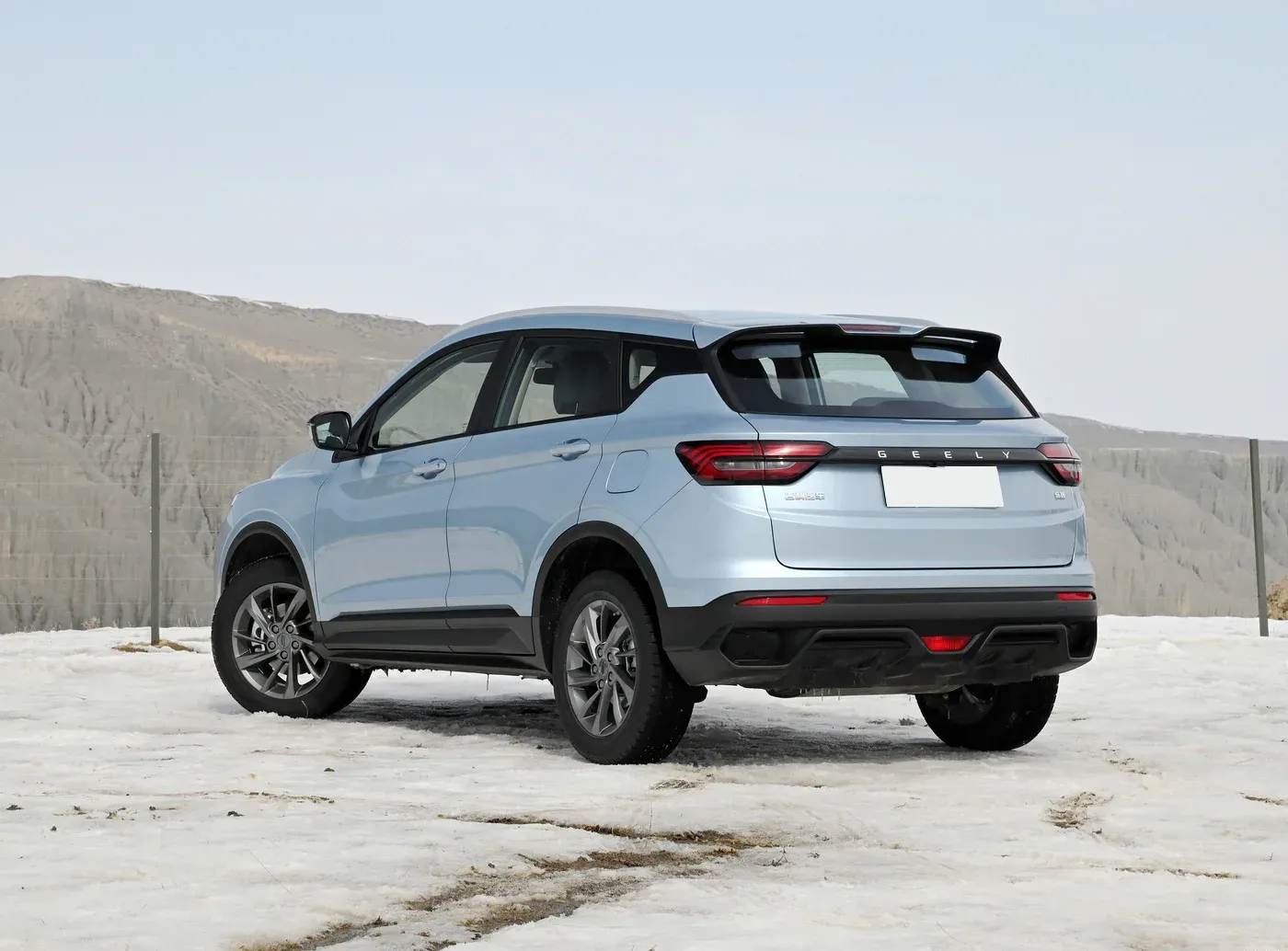

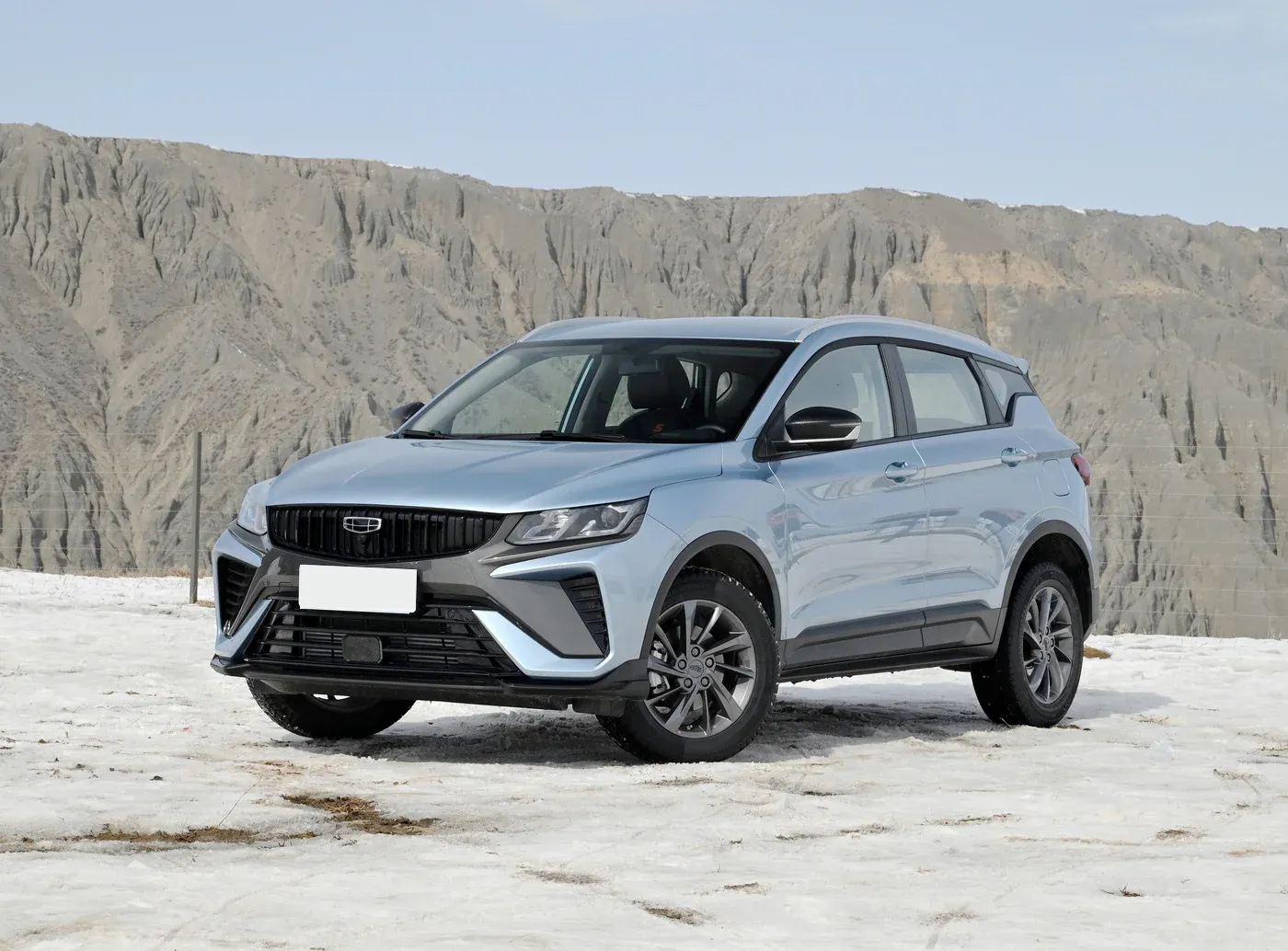

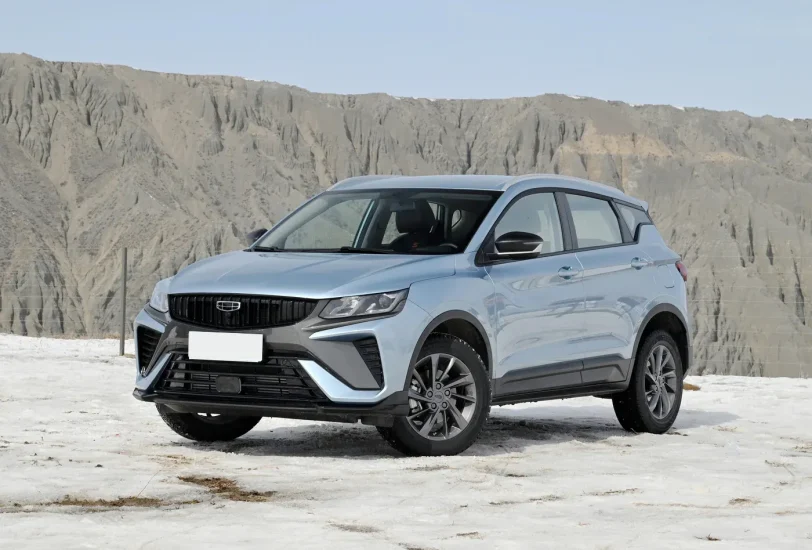

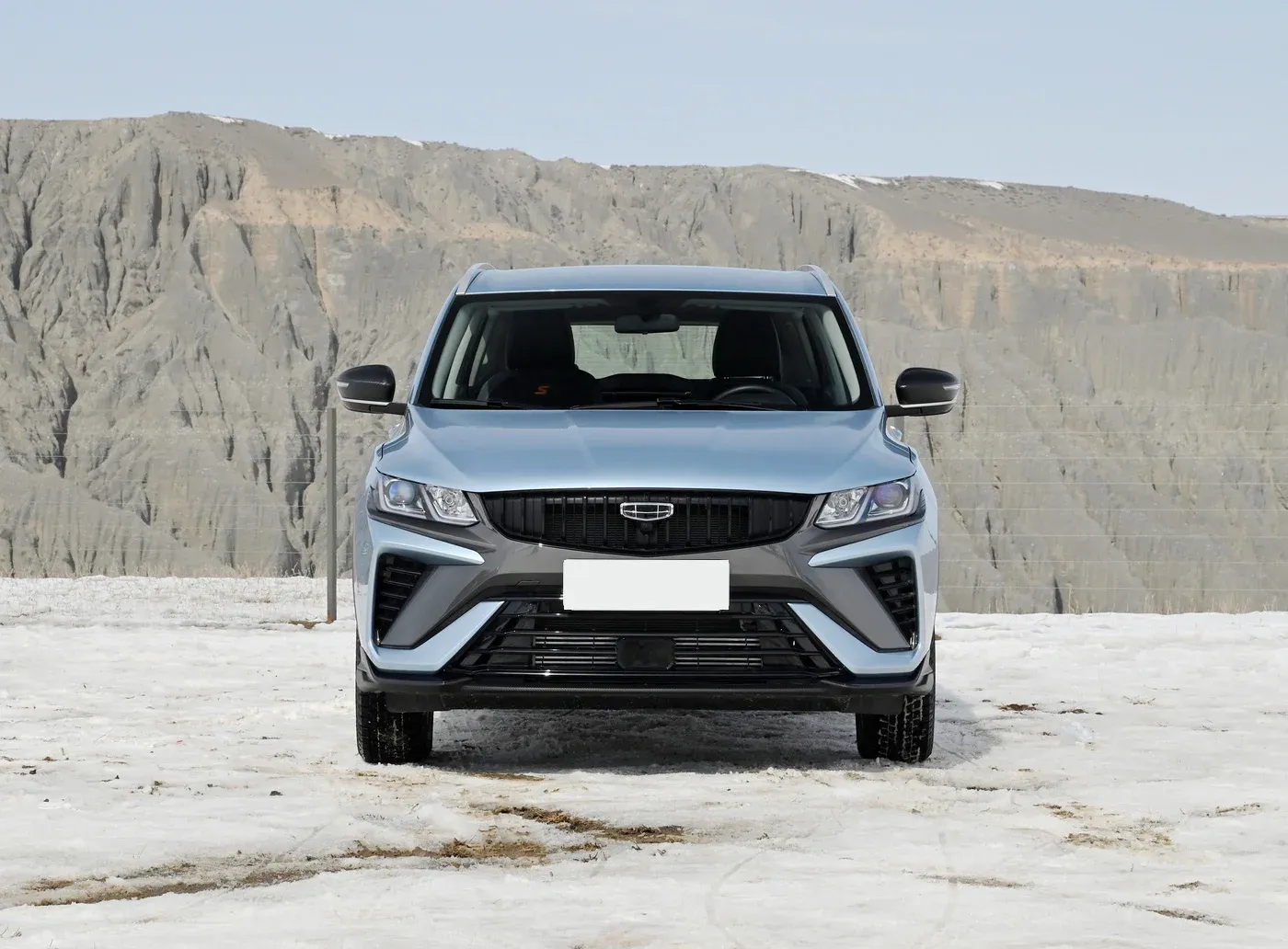

The Coolray stands out with its bold and youthful design, featuring a family-style water droplet ripple grille at the front, complemented by sharp, dynamic lighting elements that create a striking visual presence. Its sleek, flowing side profile and dual waistline enhance its athletic stance, while the full, sculpted rear design with LED taillights not only improves visibility during nighttime driving but also enhances the vehicle's overall recognition.

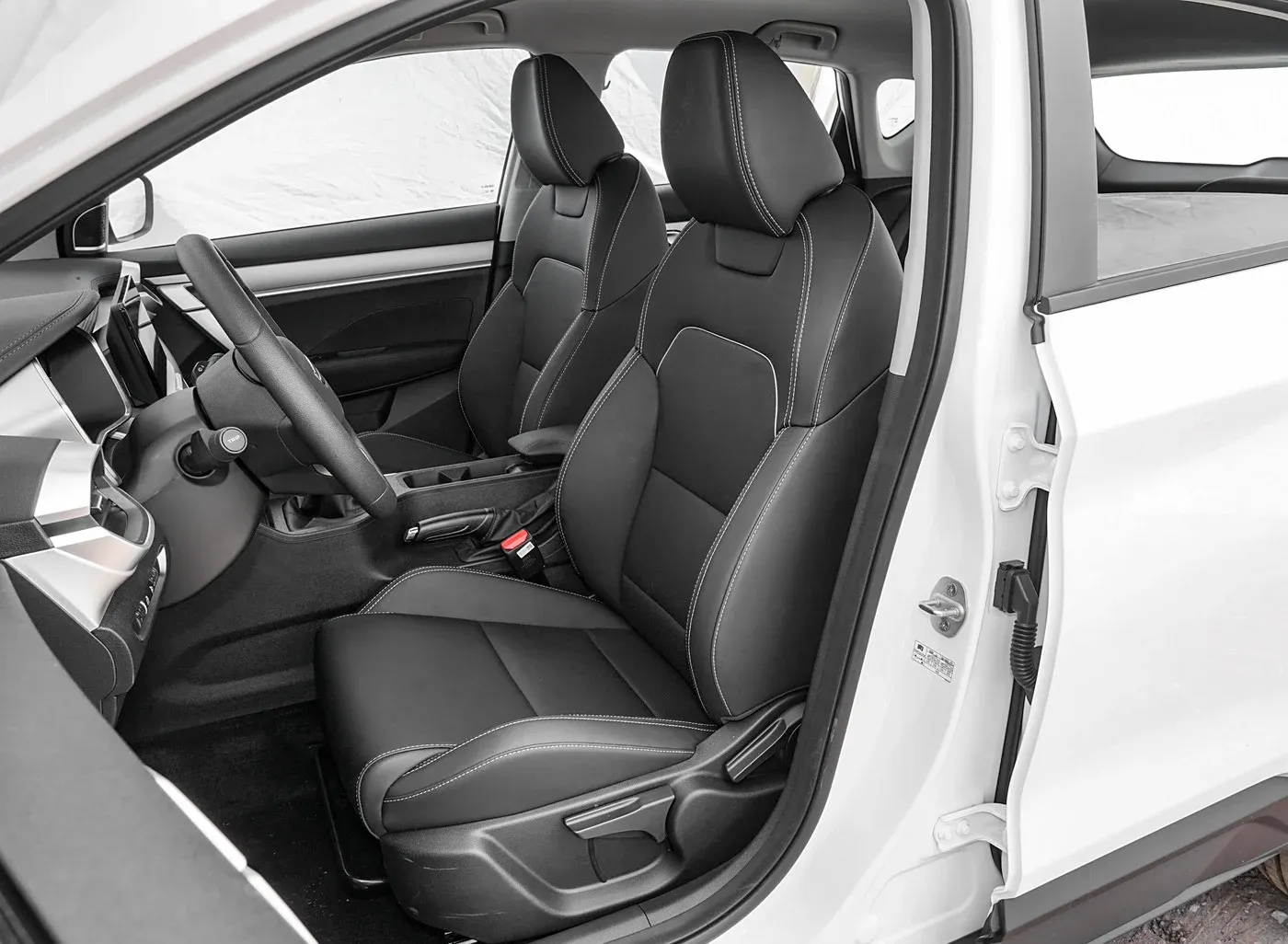

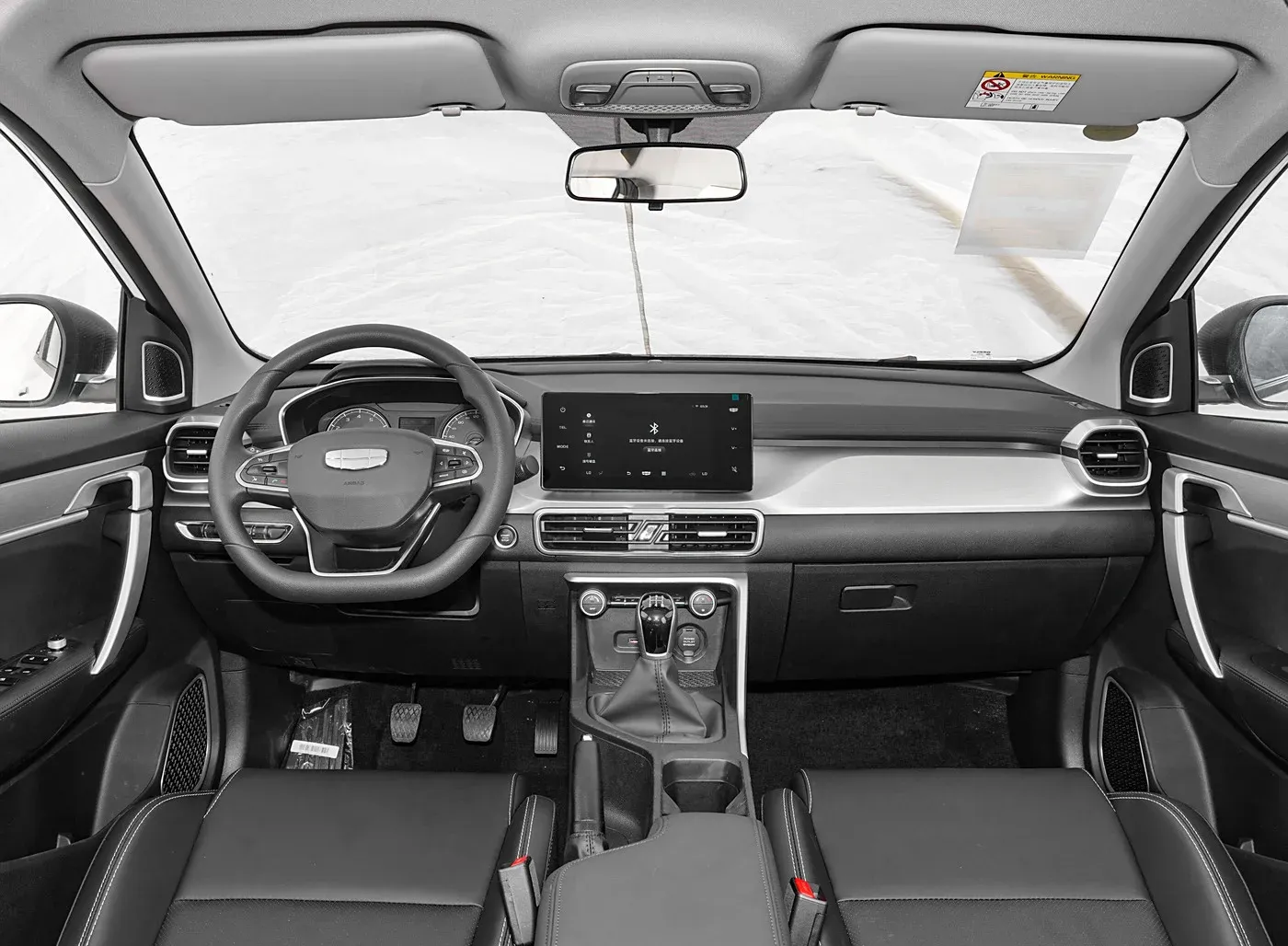

Inside, the Geely Coolray continues to impress with its blend of sophistication and cutting-edge technology. The center console is wrapped in soft-touch materials that elevate the cabin's refined feel, while the multi-functional steering wheel and floating center screen add a futuristic touch. With thoughtful amenities like a panoramic sunroof, keyless entry, and one-touch start, the Coolray offers both comfort and convenience, ensuring an enjoyable driving experience at every turn.
Parameter configuration
| name | Geely Coolray 2025 1.5L manual super power version | Geely Coolray 2025 1.5L CVT Super power version |
| Basic information | ||
| manufacturer | Geely Automobile | Geely Automobile |
| rank | Small SUV | Small SUV |
| Energy type | gasoline | gasoline |
| Time to market | 2024.07 | 2024.07 |
| engine | 1.5L 126hp L4 | 1.5L 126hp L4 |
| Maximum power (kW) | 93(126Ps) | 93(126Ps) |
| Maximum torque (N·m) | 152 | 152 |
| gearbox | 5-speed manual | CVT continuously variable speed |
| Length x Width x Height (mm) | 4330x1800x1609 | 4330x1800x1609 |
| Body structure | 5 door 5 seat SUV | 5 door 5 seat SUV |
| Maximum speed (km/h) | 175 | 170 |
| Official 100 km Acceleration time (s) | - | - |
| NEDC combined Fuel consumption (L/100km) | - | - |
| WLTC Combined Fuel consumption (L/100km) | 6.46 | 6.89 |
| Vehicle warranty period | Four years or 100,000 kilometers | Four years or 100,000 kilometers |
| Estimated total maintenance cost of 60,000 km | - | - |
| body | ||
| Length (mm) | 4330 | 4330 |
| Width (mm) | 1800 | 1800 |
| Height (mm) | 1609 | 1609 |
| Wheelbase (mm) | 2600 | 2600 |
| Front wheel base (mm) | 1551 | 1551 |
| Rear wheel base (mm) | 1562 | 1562 |
| Body structure | SUV | SUV |
| Number of doors (each) | 5 | 5 |
| Door opening mode | Swing door | Swing door |
| Number of seats (PCS) | 5 | 5 |
| Service weight (kg) | 1255 | 1289 |
| Full load weight (kg) | 1630 | 1664 |
| Tank capacity (L) | 45 | 45 |
| Luggage compartment Capacity (L) | 820 | 820 |
| Minimum turning radius | - | - |
| engine | ||
| Engine type | BHE15-AFD | BHE15-AFD |
| Volume (mL) | 1499 | 1499 |
| Displacement (L) | 1.5 | 1.5 |
| Intake form | Natural aspiration | Natural aspiration |
| Engine layout pattern | Hold horizontally | Hold horizontally |
| Cylinder arrangement | L | L |
| Number of cylinders (PCS) | 4 | 4 |
| Valve per cylinder (number) | 4 | 4 |
| Compression ratio | 11 | 11 |
| Valve mechanism | DOHC | DOHC |
| Maximum horsepower (Ps) | 126 | 126 |
| Maximum power (kW) | 93 | 93 |
| Maximum power speed (rpm) | 6300 | 6300 |
| Maximum torque (N·m) | 152 | 152 |
| Maximum torque speed (rpm) | 4000-5000. | 4000-5000. |
| Engine specific technology | DVVT | DVVT |
| Fuel form | gasoline | gasoline |
| Fuel oil label | 92 # | 92 # |
| Oil supply mode | Direct injection in cylinder | Direct injection in cylinder |
| Cylinder head material | Aluminium alloy | Aluminium alloy |
| Cylinder block material | Aluminium alloy | Aluminium alloy |
| Environmental protection standard | Country VI b | Country VI b |
| gearbox | ||
| Transmission description | 5-speed manual | CVT continuously variable speed |
| Shift number | 5 | Stepless speed change |
| Transmission type | Manual Transmission (MT) | Continuously variable Transmission (CVT) |
| Chassis/steering | ||
| Driving mode | front-drive | front-drive |
| Front suspension form | McPherson type independent suspension | McPherson type independent suspension |
| Rear suspension form | Longitudinal torsion beam type non-independent suspension | Longitudinal torsion beam type non-independent suspension |
| Steering type | Electric power assist | Electric power assist |
| Car body structure | self-supporting | self-supporting |
| Wheel/Brake | ||
| Front brake type | Ventilated disk type | Ventilated disk type |
| Rear brake type | Solid disk type | Solid disk type |
| Parking brake type | handbrake | Electronic parking |
| Front tire specifications | 215/65 R16 | 215/60 R17 |
| Rear tire specifications | 215/65 R16 | 215/60 R17 |
| Spare gauge | ● Not full size | ● Not full size |
| Spare tire placement method | ● Hidden type | ● Hidden type |
| Active safety | ||
| ABS anti-lock | ● Standard Configuration | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | ● Standard Configuration | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | - | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | - | ● Standard Configuration |
| Active safety early warning system | - | - |
| Active brake | - | - |
| Parallel auxiliary | - | - |
| Lane keeping assist system | - | - |
| Keep lane centered | - | - |
| Fatigue driving tips | - | - |
| Active DMS fatigue detection | - | - |
| In-car vital signs detection | - | - |
| Road traffic sign recognition | - | - |
| Signal light recognition | - | - |
| Night vision system | - | - |
| Passive safety | ||
| Front airbag | ● Main driver seat | ● Main driver seat |
| ● Passenger seat | ● Passenger seat | |
| Side airbag | - | - |
| Side safety air curtain | - | - |
| Front knee air bag | - | - |
| Central airbag | - | - |
| Seat belt is not fastened | ● Standard Configuration | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure alarm | ● Tire pressure alarm |
| Child Seat Interface (ISOFIX) | ● Standard Configuration | ● Standard Configuration |
| Passive pedestrian protection | - | - |
| Safety tyre | - | - |
| Auxiliary/control configuration | ||
| Parking radar | - | - |
| Warning of front car leaving | - | - |
| Driver assistance image | ● Astern image | ● Astern image |
| - | - | |
| - | - | |
| Cruise control system | ● Cruise control | ● Cruise control |
| Automatic lane change assistance | - | - |
| Automatic ramp exit | - | - |
| Navigation assistance driving | - | - |
| Driver assistance class | - | - |
| Automatic parking | - | - |
| Tracking astern | - | - |
| Memory parking | - | - |
| AUTOHOLD | - | ● Standard Configuration |
| Uphill Assistance (HAC) | - | ● Standard Configuration |
| Steep Descent (HDC) | - | ● Standard Configuration |
| Engine start-stop technology | - | - |
| Variable suspension regulation | - | - |
| Air suspension | - | - |
| Electromagnetic induction suspension | - | - |
| Variable steering ratio system | - | - |
| Front axle limited slip mode | - | - |
| Rear axle limited slip mode | - | - |
| Central differential locking function | - | - |
| Low-speed four-wheel drive | - | - |
| Integrated active steering system | - | - |
| Driving mode selection | - | - |
| - | - | |
| - | - | |
| External configuration | ||
| Skylight type | - | - |
| - | - | |
| Light sense canopy | - | - |
| Roof rack | - | - |
| Sports appearance kit | - | - |
| Electric spoiler | - | - |
| Active closed intake grille | - | - |
| Aluminium alloy wheel hub | ● Standard Configuration | ● Standard Configuration |
| Side pedal | - | - |
| Frameless design door | - | - |
| Hidden door handle | - | - |
| Towing hook | - | - |
| Internal configuration | ||
| Steering wheel material | ● Plastic | - |
| - | ● Cortex | |
| Steering wheel adjustment | ● Up and Down | ● Up and Down |
| Electric steering wheel control | - | - |
| Steering wheel function | ● Multi-function control | ● Multi-function control |
| Shift pattern | ● Mechanical handle | ● Mechanical handle |
| - | - | |
| Driving computer screen | ● Monochrome | ● Monochrome |
| LCD instrument style | ● Non-full liquid crystal | ● Non-full liquid crystal |
| LCD meter size (inches) | - | - |
| - | - | |
| Comfort/security configuration | ||
| Electric suction door | - | - |
| Electric rear door | - | - |
| Inductive rear door | - | - |
| Electric rear door position memory | - | - |
| Engine electronic anti-theft | ● Standard Configuration | ● Standard Configuration |
| Car central control lock | ● Standard Configuration | ● Standard Configuration |
| Remote key type | ● Ordinary remote control key | ● Ordinary remote control key |
| - | - | |
| - | - | |
| Keyless entry | - | - |
| Keyless start | ● Standard Configuration | ● Standard Configuration |
| Remote boot | - | - |
| Remote control mobile vehicle | - | - |
| Vehicle call function | - | - |
| Head-up display system (HUD) | - | - |
| Built-in tachograph | - | - |
| Active noise reduction | - | - |
| Mobile phone wireless charging | - | - |
| 110V/220V/230V power socket | - | - |
| Luggage compartment 12V power interface | - | - |
| Seat configuration | ||
| Seat material | ● Imitation leather | ● Imitation leather |
| Sports style seat | - | - |
| Seat layout | ●2+3 | ●2+3 |
| Second row of separate seats | - | - |
| Third row seat | - | - |
| Electric seat adjustment | - | - |
| Overall adjustment of the main driver seat | ● Forward and backward movement | ● Forward and backward movement |
| ● Backrest Angle | ● Backrest Angle | |
| ● High and low adjustment | ● High and low adjustment | |
| Local adjustment of the main driver seat | ● Headrest | ● Headrest |
| Passenger seat overall adjustment | ● Forward and backward movement | ● Forward and backward movement |
| ● Backrest Angle | ● Backrest Angle | |
| Passenger seat local adjustment | ● Headrest | ● Headrest |
| Second row seat overall adjustment | - | - |
| The second row of seats is partially adjusted | - | - |
| Front seat function | - | - |
| Second row seat feature | - | - |
| Third row seat function | - | - |
| Boss key | - | - |
| Front/rear armrests | ● Front Row | ● Front Row |
| Rear cup holder | - | - |
| Heating/cooling cup holder | - | - |
| Rear seat reclining ratio | ●40:60 | ●40:60 |
| Rear-seat power reclining | - | - |
| Second row of tray tables | - | - |
| Intelligent interconnection | ||
| Center control screen size (inches) | ●8 | ●8 |
| Central control screen material | - | - |
| Touch screen vibration feedback | - | - |
| GPS navigation system | - | - |
| AR reality navigation | - | - |
| Navigation information display | - | - |
| Road rescue service | - | - |
| Bluetooth/car phone | ● Standard Configuration | ● Standard Configuration |
| Mobile Internet mapping | ● Original factory machine | ● Original factory machine |
| - | - | |
| Vehicle networking | - | - |
| 4G/5G network | - | - |
| OTA upgrade | - | - |
| Facial recognition | - | - |
| Fingerprint recognition | - | - |
| Voiceprint recognition | - | - |
| Emotion recognition | - | - |
| Speech recognition control system | - | - |
| Voice wake-up free function | - | - |
| Voice region wake-up recognition function | - | - |
| - | - | |
| Continuous speech recognition | - | - |
| Visible to say | - | - |
| Voice assistant wake word | - | - |
| Gesture control function | - | - |
| Wi-Fi hotspot | - | - |
| Audio-visual entertainment | ||
| Multi-finger fly screen control | - | - |
| App store | - | - |
| Multimedia interface | ●USB/Type-C | ●USB/Type-C |
| Number of USB/Type-C ports | ● One in the front row | ● One in the front row |
| ● One in the back | ● One in the back | |
| USB/Type-C Maximum charging power | - | - |
| Car TV | - | - |
| Rear LCD screen | - | - |
| Simulated sound wave | - | - |
| Audio brand | - | - |
| Number of speakers (PCS) | ●4 | ●4 |
| Rear multimedia control | - | - |
| Lighting arrangement | ||
| Low beam lamp | ● Halogen | ● Halogen |
| Full beam | ● Halogen | ● Halogen |
| Daytime running light | ● Standard Configuration | ● Standard Configuration |
| Adaptive near and far light | - | - |
| Automatic headlight | ● Standard Configuration | ● Standard Configuration |
| Steering auxiliary light | - | - |
| Front fog lamp | - | - |
| Headlight Follow-up Steering (AFS) | - | - |
| Headlight height adjustment | ● Standard Configuration | ● Standard Configuration |
| Headlight cleaning function | - | - |
| Interior ambient light | - | - |
| Active ambient light | - | - |
| Lighting feature | - | - |
| Light projection technique | - | - |
| Headlights turn off late | ● Standard Configuration | ● Standard Configuration |
| Headlight rain fog mode | - | - |
| Glass/rear view mirror | ||
| Power window | ● Front Row | ● Front Row |
| ● Back Row | ● Back Row | |
| The window is raised and lowered by one click | - | ● Main driver seat |
| Window anti-clamping function | - | ● Standard Configuration |
| Exterior rearview mirror function | ● Electric regulation | ● Electric regulation |
| - | - | |
| - | - | |
| - | - | |
| Internal rearview mirror function | - | - |
| Car mirror | ● Main driver + no lighting | ● Main driver + no lighting |
| ● Passenger seat + no lighting | ● Passenger seat + no lighting | |
| Rear privacy glass | - | - |
| Car sun curtain | - | - |
| Rain sensing wipers | - | - |
| Rear wiper | - | - |
| Rear window opens | - | - |
| Multilayer soundproof glass | - | - |
| Front windshield electric heating | - | - |
| Heating water nozzle | - | - |
| Air conditioning/Refrigerator | ||
| Air conditioning control mode | ● Manual | ● Manual |
| Independent rear air conditioning | - | - |
| Rear air outlet | - | - |
| Concealed air conditioning outlet | - | - |
| Temperature zone control | - | - |
| Car air purifier | - | - |
| PM2.5 filter device in car | - | - |
| HEPA filter device | - | - |
| Anion generator | - | - |
| In-car fragrance device | - | - |
| AQS Air Quality Management System | - | - |
| Car refrigerator | - | - |
| Car refrigerator function | - | - |
| Intelligent configuration | ||
| Vehicle intelligent system | - | - |
| Car smart chip | - | - |
| Mobile App remote control | - | - |
| - | - | |
| - | - | |
| - | - | |
| Heat pump management system | - | - |
| Number of external cameras (PCS) | ●1 | ●1 |
| Outside camera head pixel | - | - |
| Interior camera head pixel | - | - |
| Number of ultrasonic radars (PCS) | - | - |
| Sub-meter high precision positioning system | - | - |
| High precision map | - | - |
| Sentinel (Clairvoyant) mode | - | - |
| V2X communication | - | - |
| Optional package | ||
| Custom optional | Optional exterior, interior, hub, brakes | Optional exterior, interior, hub, brakes |
| Sports racing kit | ||
| - | - |
Features
Dimensions & Capacity
Any questions? Contact us now
Get In Touch
If you have any questions or need support, fill out the form below with your name, email, and message and we will respond as soon as possible.
Contact details
We are always here to answer any questions or concerns you may have. Thanks for contacting us!
- Unit A, Jiajinlong Qianhai Automobile Town, Nanshan District, Shenzhen City, Guangdong, China
- 8619521162618
- thomas@chinaautodirect.com
- 8619521162618
Follow us
ABOUT US
Welcome to China Auto Direct, your premier source for the finest Chinese automobiles at unbeatable prices. We specialize in providing businesses worldwide with direct access to a diverse range of high-quality vehicles from China, ensuring that you receive exceptional value and reliable service with every transaction.
Why Choose Us?
Quality Assurance
We offer a curated selection of vehicles, ensuring that you receive only the best autos from China.
Competitive Pricing
Our direct sourcing approach allows us to offer competitive prices, providing you with great value.
Reliable Service
Our experienced team is dedicated to ensuring a smooth and efficient export process, handling all the details so you can focus on your business.
Global Reach
With a robust network of partners and clients worldwide, we are well-equipped to meet your automotive needs, no matter where you are.
Frequently Asked Questions
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident.
Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
